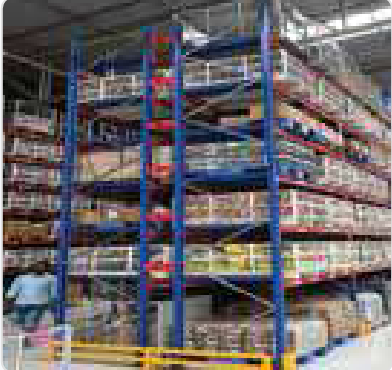

Selective Pallet Racks provide direct access to stored pallets and help use warehouse space effectively. The system is available in standard catalogue dimensions and can be configured according to pallet and load requirements.
| Standard Beam Length | Beam Sizes | Standard Depth | Upright Height | Upright Sizes |
|---|---|---|---|---|
| 1800 | 65 x 45 | 600mm to 1200mm | 3000 | Size: 84 x 65 100 x 65 120 x 65 Thickness: 1.6mm 1.8mm 2mm 2.5mm |
| 2000 | 80 x 45 | 4050 | ||
| 2100 | 100 x 45 | 4650 | ||
| 2300 | 125 x 45 | 5100 | ||
| 2500 | 150 x 45 | 5600 | ||
| 2700 | 200 x 45 | 6100 | ||
| 3000 | 7200 |
Load Capacity: 200Kg to 2500Kg per level
